Include functions in the @ptitude Observer

• March 25, 2025 14:43

Our client Klabin request to us to include two features on the @ptitude  Observer

Include the harmonic function in the fault frequencies; currently, only the fundamental frequency is marked when activated.
Include a percentage adjustment for the fault frequency in the fundamental frequency.

Please avaluete and I am availiable for any questions.

Best regards

Vote 3 Votes

•

  • April 10, 2025 08:52

  Hello,

  Not quite sure if I understand the requests. But for the first one, are you referring to showing the harmonics in the graph? If so, have you tried enabling harmonic cursor?

  What is the user hoping to achieve that can't be done in the current software?

  I can't see who posted this request so can't reach out in person

  Br

  Henrik Eriksson


•

  • April 10, 2025 13:05

  I did not make the comment but I have heard this before that the User would like to label not just the fundamental bearing frequencies but also label a configured number of harmonics of the bearing frequencies.  So placing a harmonic cursor on the fundamental helps with this but the desire is that these peaks are labeled and easy to see when present so that User does not have to utilize the Harmonic Cursor.

  The second point is to add some clarity on how much difference there can be between the frequency and the Machine Parts Calculation and still have the frequency identified as the defect.

  Mike Ingram
•

  • May 20, 2025 09:55

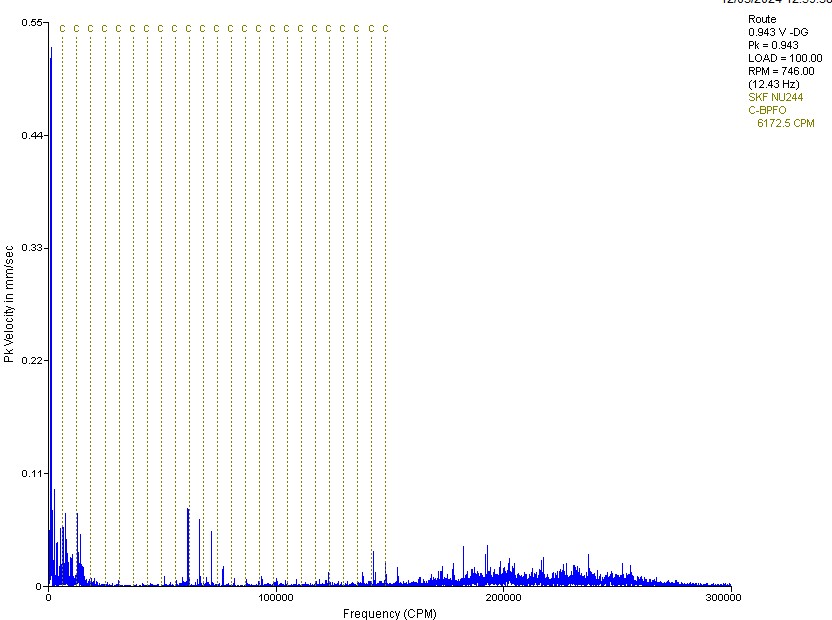

  We would also like to have this functionality, instead of displaying all 4 the fundamental bearing fault frequencies at once, and having to add harmonics and cycle between the fundamentals to see their harmonics, we would prefer to see one fundamental with some harmonics and and then move to the next fundamental, preferably with a keyboard shortcut
