How to use extra tools with TKSA 71 alignment tool

Summary

This article contains a step-by-step instructions on how to use sliding brackets, offset brackets and a magnetic base with TKSA 71 alignment tool.

Instructions

Attention! Always follow safety protocols to prevent accidents.

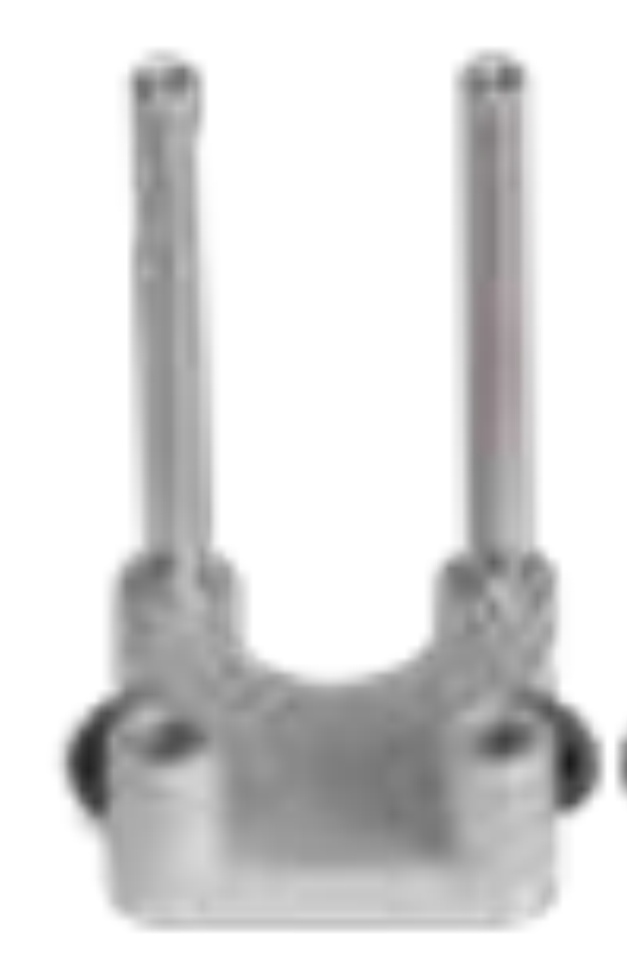

Sliding Brackets (Use when the shafts do not rotate)

1. 1. Preparation

      • Ensure sure the machine is safely turned off and securely locked out.
      • Clean the shafts to ensure the sliding brackets attach securely.



   2. Attaching sliding brackets with magnetic wheels


      • Attach the TKSA measuring units to the brackets following the standard alignment procedure.
      • Position the sliding brackets on the shafts at the desired location.
      • The magnetic wheels will automatically secure the brackets to the shafts.
      • Ensure the bracket is securely attached and not sliding.



   3. Adjusting the sliding brackets

      • Slide the bracket along the shaft to achieve the correct positioning (0°, 90°, 270°) in order to perform alignment procedure.
      • Ensure the brackets are aligned parallel to each other for accurate measurements.


   4. Verification

      • Double-check the stability of the sliding bracket and its alignment.

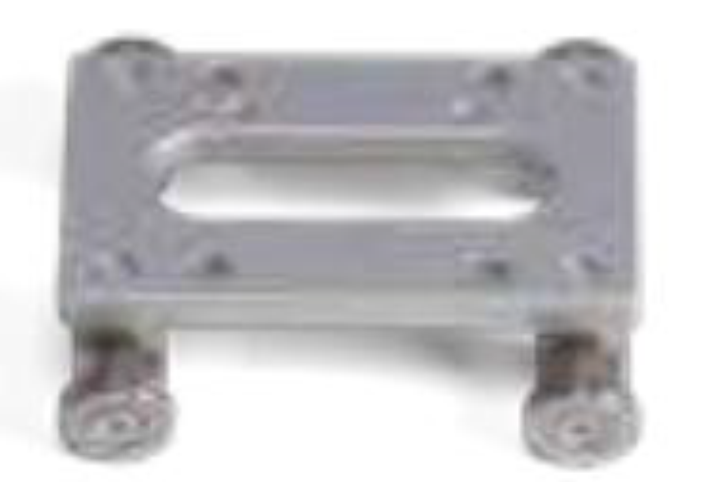

Offset Brackets: Use to compensate for obstructions or necessary offsets

1. Preparation

   • Ensure sure the machine is safely turned off and securely locked out.
   • Clean the shafts to ensure the sliding brackets attach securely.



2. Attaching sliding brackets with magnetic wheels


   • Mount the standard brackets on the shafts.
   • Place the offset bracket on the standard brackets to compensate for any obstructions or necessary offsets during the alignment procedure.
   • Secure the offset bracket to the standard rods. Ensure it is firmly in place.



3. Adjusting the Offset Brackets

   • Slide the bracket along the shaft to achieve the correct positioning (0°, 90°, 270°) in order to perform alignment procedure.
   • Adjust the bracket to the necessary offset position, which may involve changing the height or lateral position to clear obstacles or achieve the required measurement geometry.


4. Verification

   • Verify that the offset bracket is secure and properly positioned.
   • Secure the TKSA 71 measuring units to the offset brackets following the standard alignment procedure.

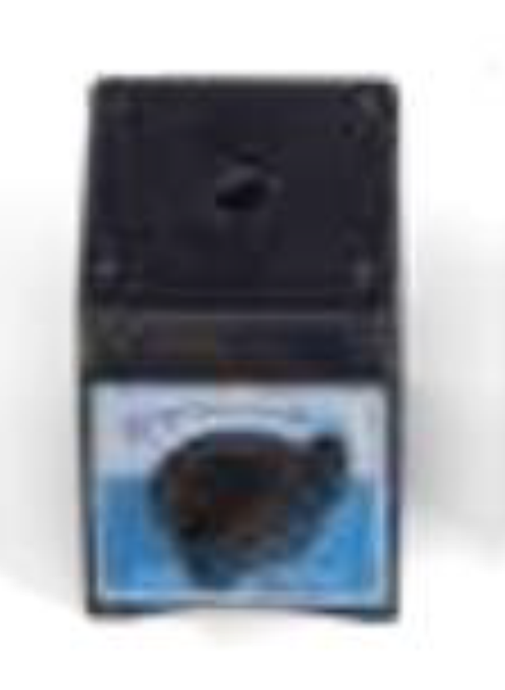

Magnetic Base (when there is no access to the shafts with standards brackets)

1. Preparation

   • Ensure sure the machine is safely turned off and securely locked out.



2. Positioning the Magnetic Base.


   • Identify a suitable magnetic surface on or near the shaft.
   • Place the magnetic base on the selected surface. Ensure the surface is clean and free of debris to maximize magnetic adhesion.



3. Securing the Magnetic Base

   • Engage the magnetic switch to activate the magnet and secure the base to the surface.
   • Ensure the base is stable. Once attached, it should remain stationary and not slide.


4. Adjusting the Magnetic Base
   • Adjust the arm or the mounting point on the magnetic base to properly position the laser unit.
   • Ensure that the laser unit is aligned and aimed correctly for accurate measurement.
5. Verification

   • Confirm that the magnetic base and laser head are securely attached and correctly positioned.
   • Proceed with the alignment measurement as per the standard operating procedure of the
     TKSA 71.

General instructions for all tools

• Safety first – Always follow safety protocols to prevent accidents.
• Accuracy – Ensure that all attachments are stable and correctly aligned to avoid measurement errors.
• Calibration – Regularly calibrate the TKSA 71 and check for wear and tear on brackets and bases.
• Documentation – Record the setup and measurements for future reference and quality assurance.

By following these procedures, you can ensure precise alignment and optimal performance of the TKSA 71 alignment tool with the additional accessories.
