How to display Cross-Phase between sensors for Microlog dBX CMVA 90

Summary

To display the phase, follow this step by step procedure.

Solution

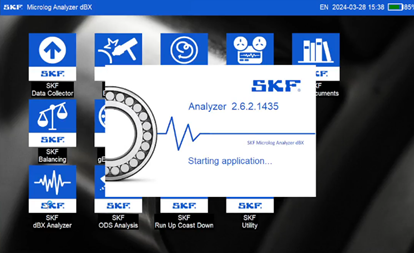

1. In your Microlog dBX, open the SKF dBX Analyzer module.

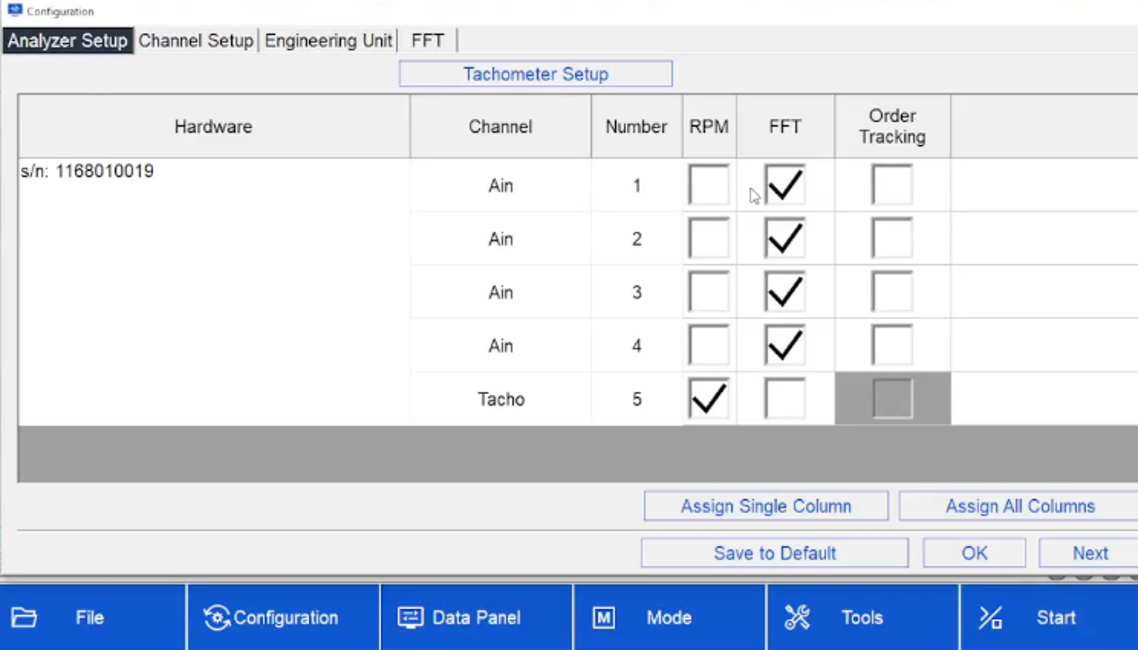

2. In the Analyzer Setup view, configure the number of channels and the Tacho.

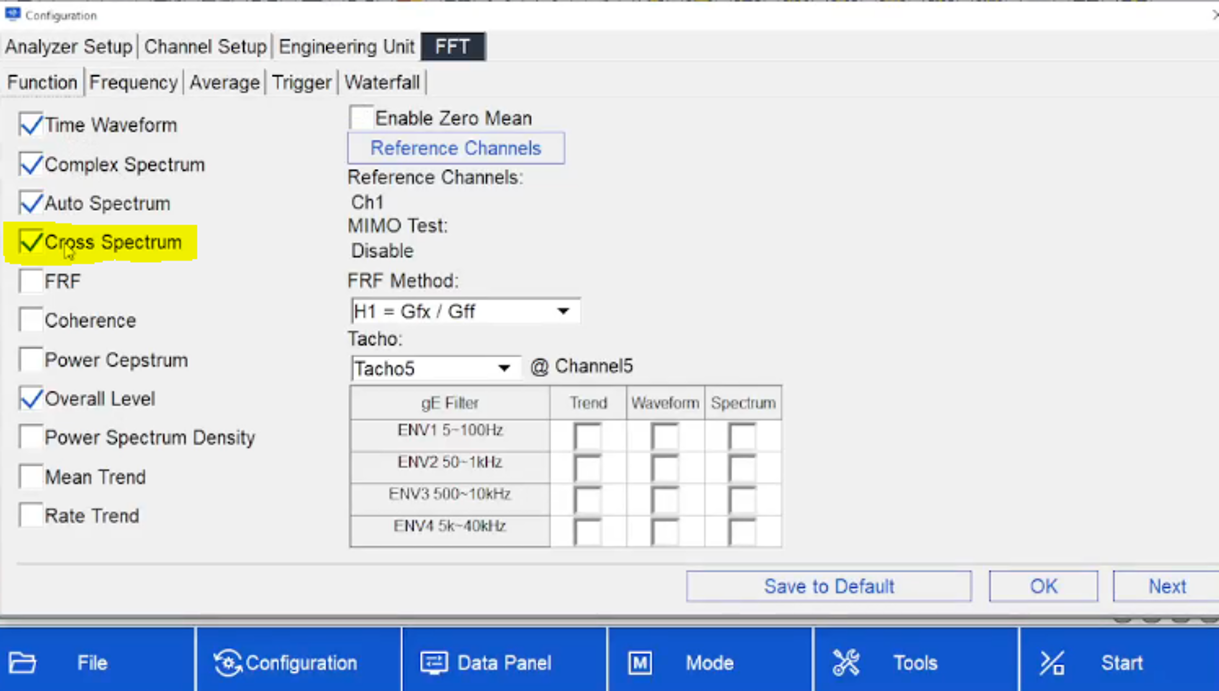

3. Select the phase on the FFT.

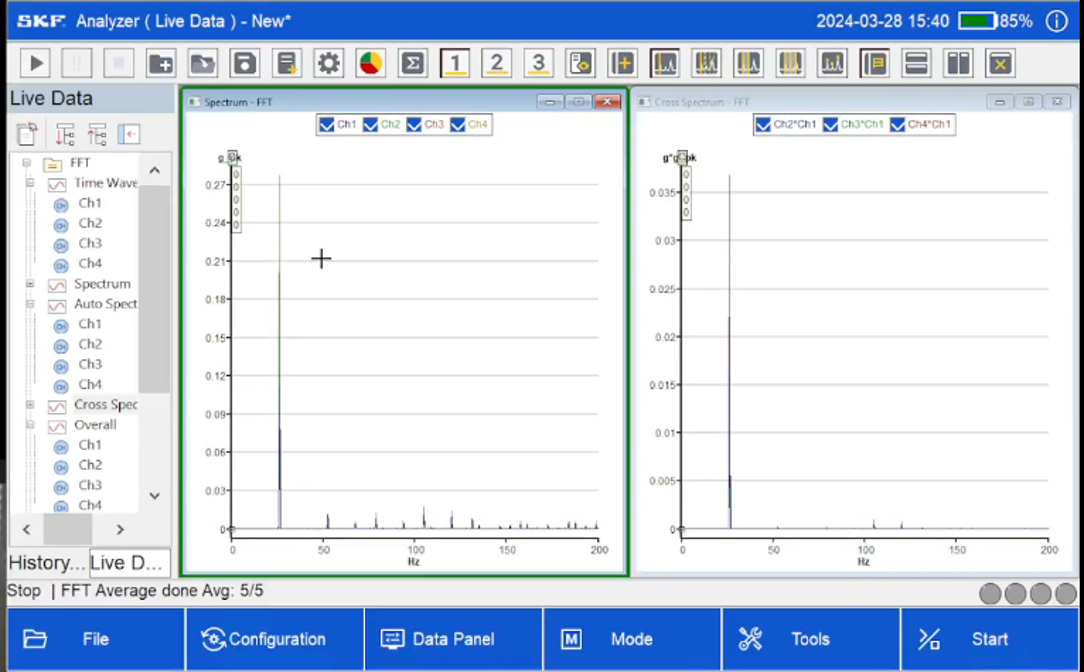

4. After collecting the data you can select the Cross-Spectrum.

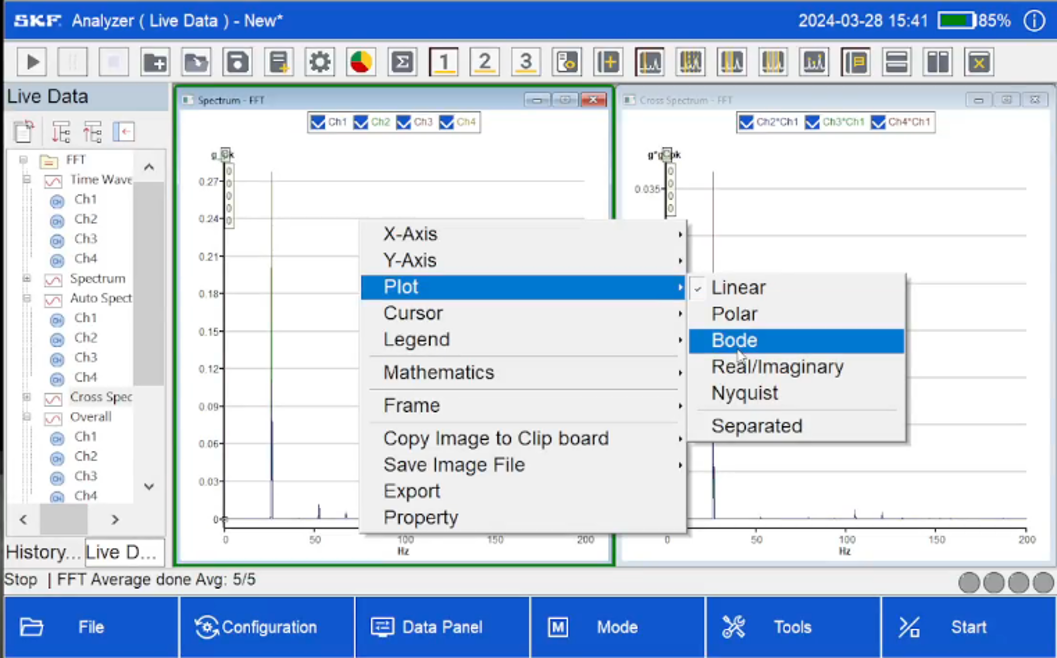

5. Right click on the plot and select Plot ->Bode to convert the plot to Bode.

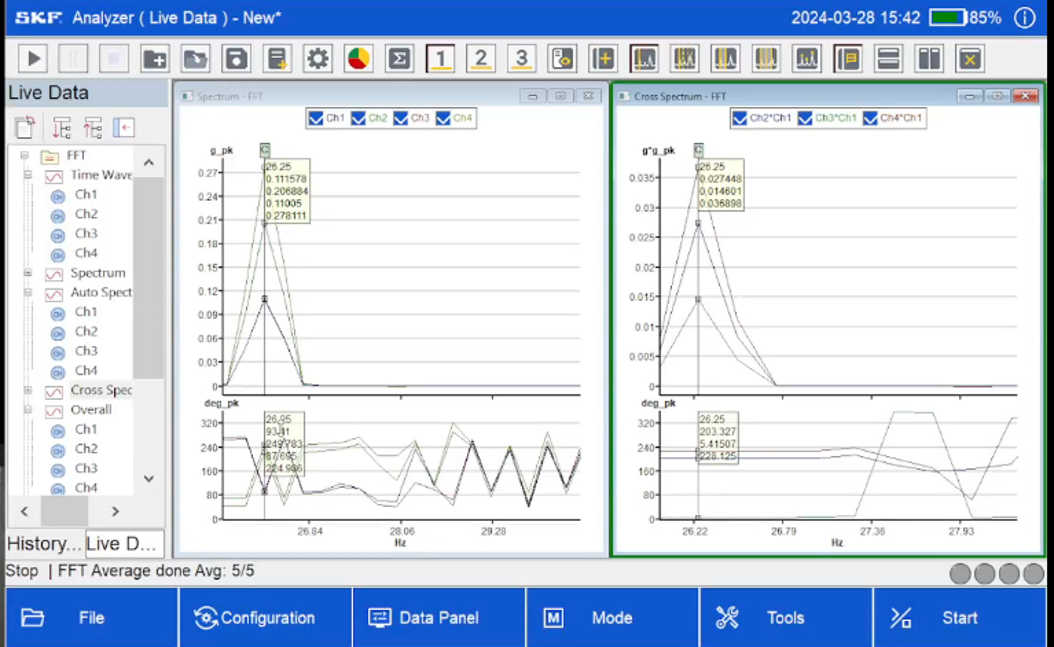

6. Select the frequency and zoom it to view the phase information.
