How to create a Balancing Report from Microlog dBX

Summary

This article describes how yo create and save Balancing Report from Microlog Analyzer dBX.

Solution

After completing a Balancing job, follow the steps below to generate and save a report:

1. Select Tools -> Generate Report.

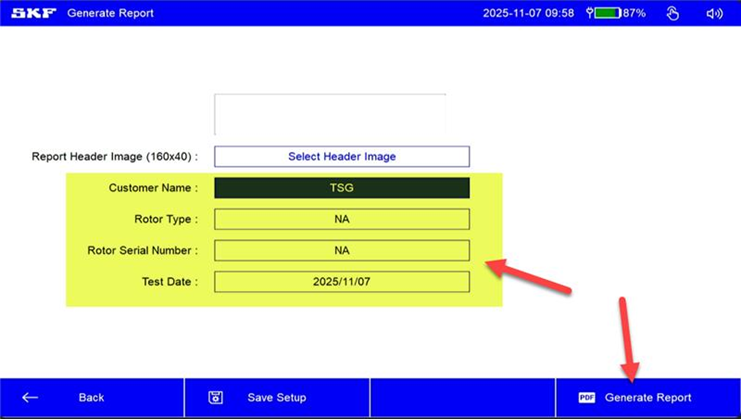

2. Enter the report information and select Generate Report.

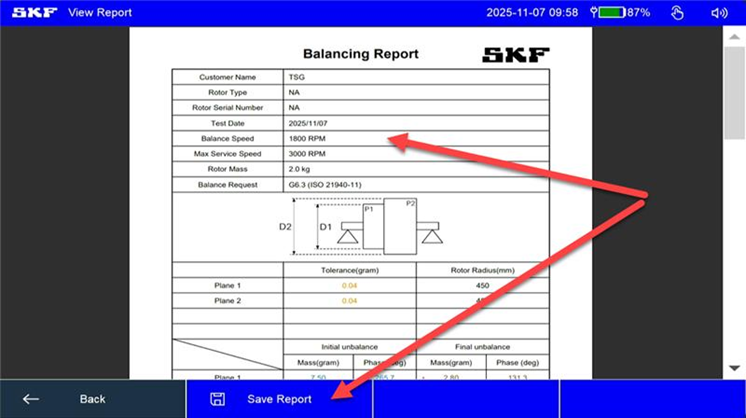

3. When the report is displayed, select Save Report.



4. By default, the report is saved to the Microlog’s internal storage.

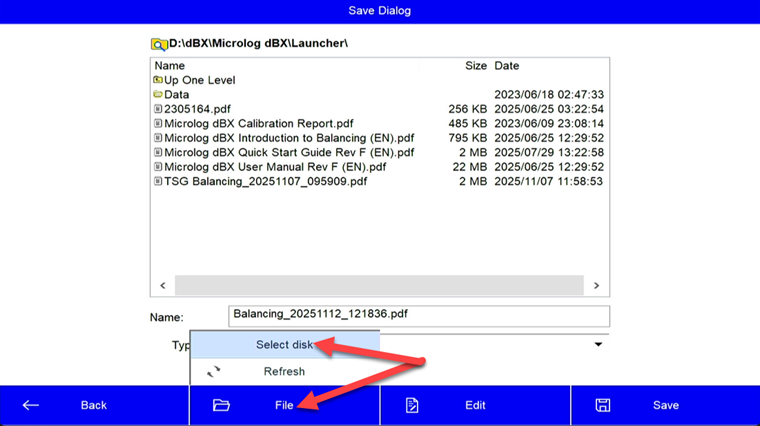

5. If an external USB drive is connected to the dBX, you can choose to save the report there by selecting File -> Select Disk.

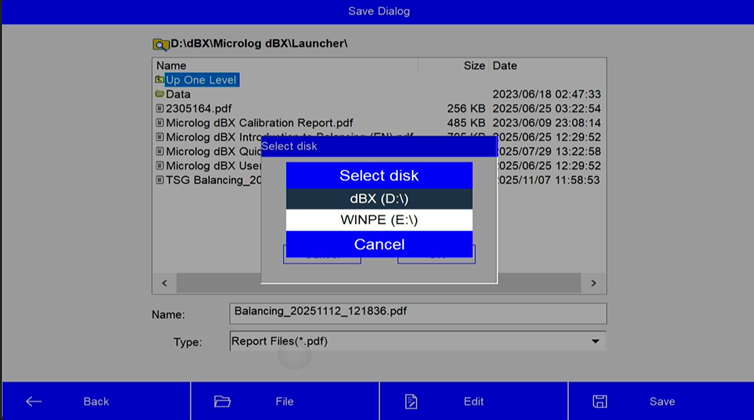

6. Choose either the Microlog’s Internal Disk (D:\) or the external USB drive (E:\).

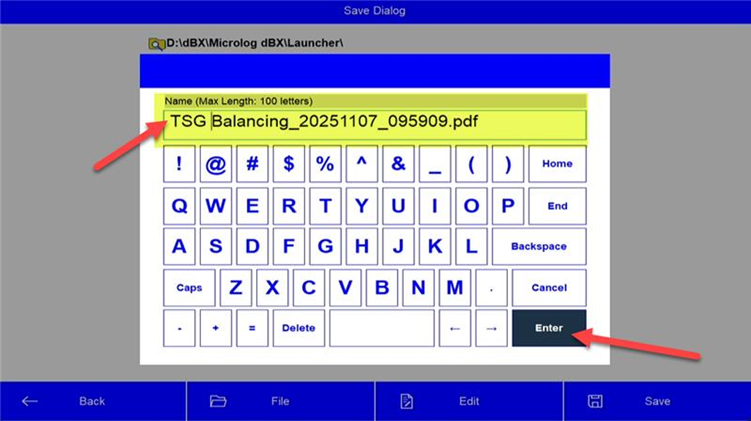

7. The default filename format is: "Balancing_YYYYMMDD_HHMMSS.pdf". In the example below "TSG" was added before the default filename.



8. Enter the desired filename and select Enter.

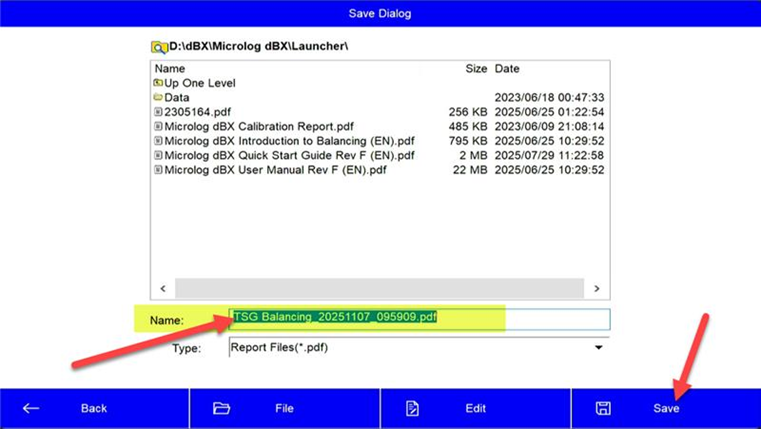

9. When the updated filename appears, select Save.



Once saved, the file will be stored in the selected location, and you will be returned to the Balancing module.
