Optimizing neck strap fixing on Microlog dBX

SKF Microlog dBX units are supplied with either a CMAC 9017 or CMAC 9027 neck strap. These straps feature a hook on each end, designed to attach to the D-ring on the factory-fitted hand strap fixing.

To enhance the sturdiness of the neck strap attachment to the Microlog dBX, follow these steps.

1. Remove the plastic clips at both ends of the neck strap.
2. Extend the webbing strap, keeping the plastic tri-glide buckle (slider) on the webbing.
3. Thread the webbing through the corner mounting pillar fixing on the Microlog dBX.

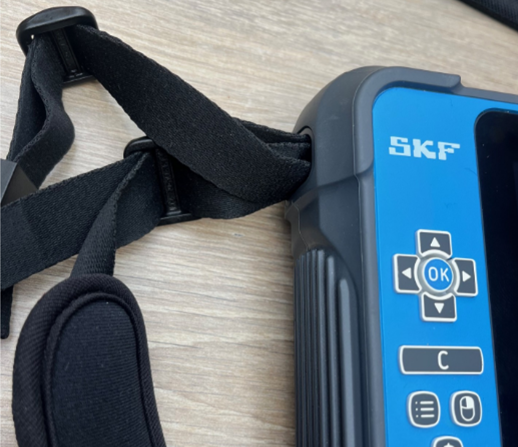

4. Fasten the webbing directly around the Microlog dBX mounting pillar. Ensure the webbing passes behind the hand strap webbing.

5. Pass the neck strap webbing through the back of the existing plastic tri-glide buckle, as in previous step.




6. Repeat the process on the opposite side of the Microlog dBX.

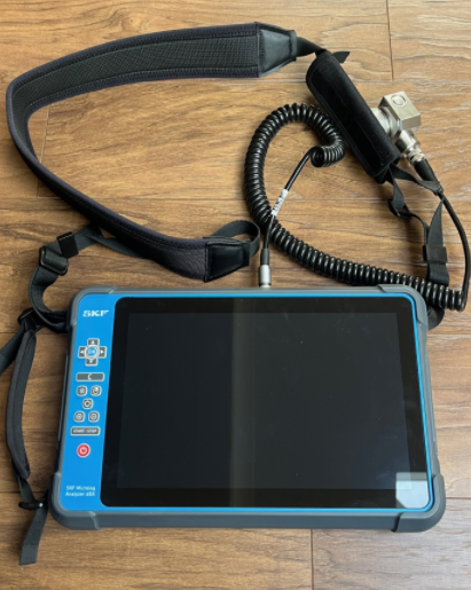

SKF Microlog dBX with hand and neck straps fastened directly to the corner mounting pillars.

Contacting SKF Technical Support Group

For further assistance please open a support case using the Technical Support group's self-help portal at www.skf.com/cm/tsg. Once your support case is submitted, a technician will contact you to begin working on your issue. For urgent issues we are available at these times by phone:

• Monday through Friday, 5:00 a.m. to 4 p.m. Pacific Time -
  Phone: [phone] within the US or [phone] outside the US.
• Monday through Friday, 8:00 a.m. to 4:00 p.m. Central European Time -
  Phone: [phone].
• Monday through Friday, 7:30 a.m. to 4:30 p.m. India Standard Time -
  Phone: [phone].
