TCTdBX and/or Microlog dBX limiting the number of FAM displayed during data collection

Summary

There is a limit on the total number of frequencies displayed on the Microlog dBX.

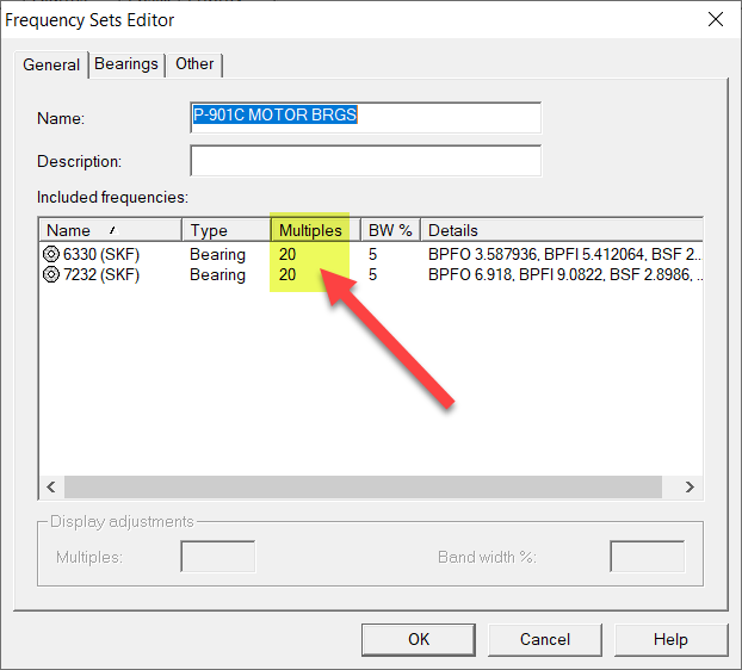

For example, if you download data for two different bearings with 20 multiples each, only the frequency markers for the first bearing are displayed. The information for the second bearing does not appear.

Solution

To avoid long download times and missing FAM (Frequency Analysis Marker) on the device, it is recommended to maintain the default setting of 4 Multiples per bearing.

Contacting SKF Technical Support Group

For further assistance please open a support case using the Technical Support group's self-help portal at www.skf.com/cm/tsg. Once your support case is submitted, a technician will contact you to begin working on your issue. For urgent issues we are available at these times by phone:

• Monday through Friday, 5:00 a.m. to 4 p.m. Pacific Time -
  Phone: [phone] within the US or [phone] outside the US.
• Monday through Friday, 8:00 a.m. to 4:00 p.m. Central European Time -
  Phone: [phone].
• Monday through Friday, 7:30 a.m. to 4:30 p.m. India Standard Time -
  Phone: [phone].
