How to resolve TCTdBX freeze during Non-Route data uploads to Microlog dBX

Summary

TCTdBX supports the upload of Non-Route data stored only in the standard UFF format. Selecting any other format may result in TCTdBX freezing.

Solution

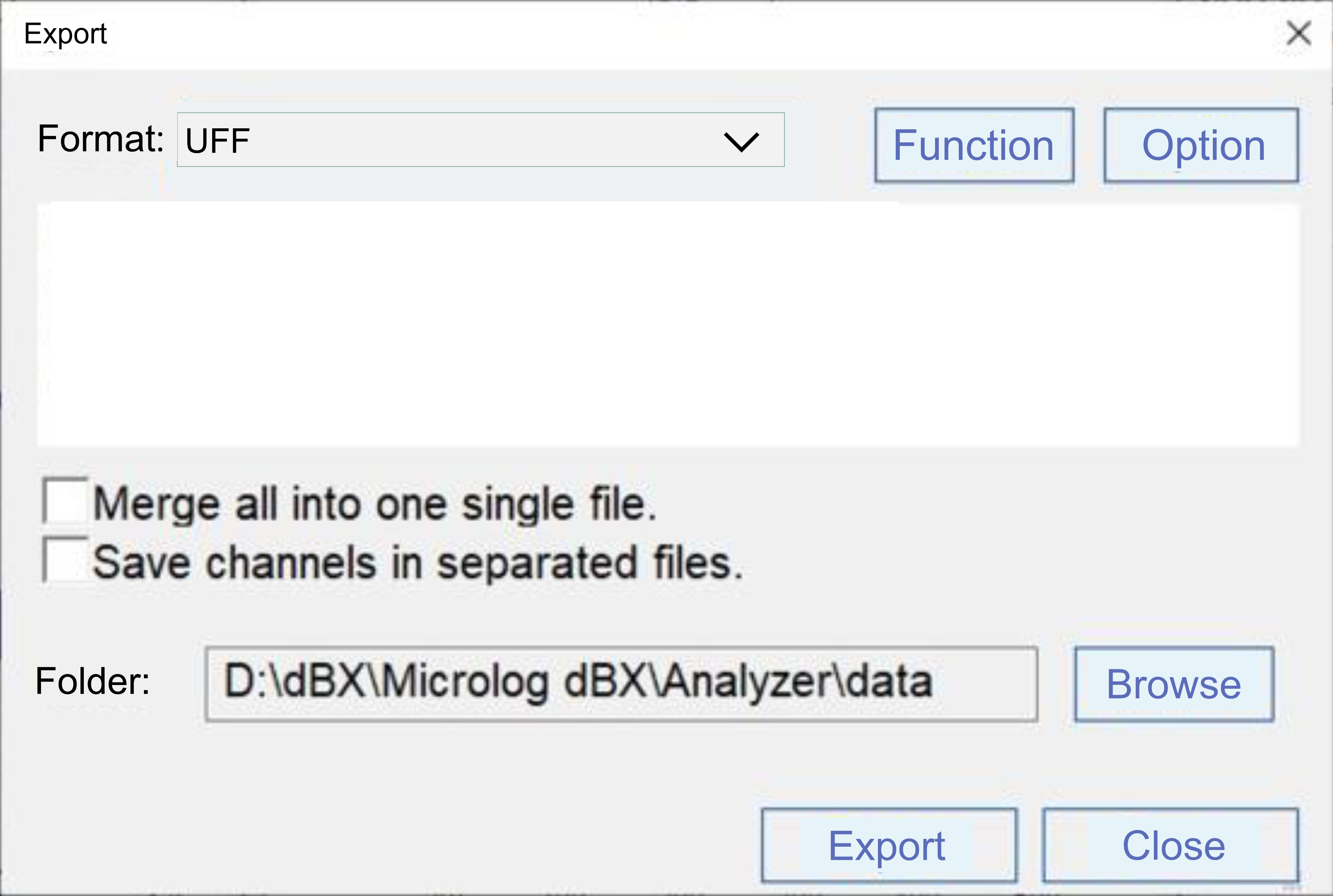

1. From the Microlog dBX Analyzer module, select File > Export.


2. From the Format drop-down, select UFF.

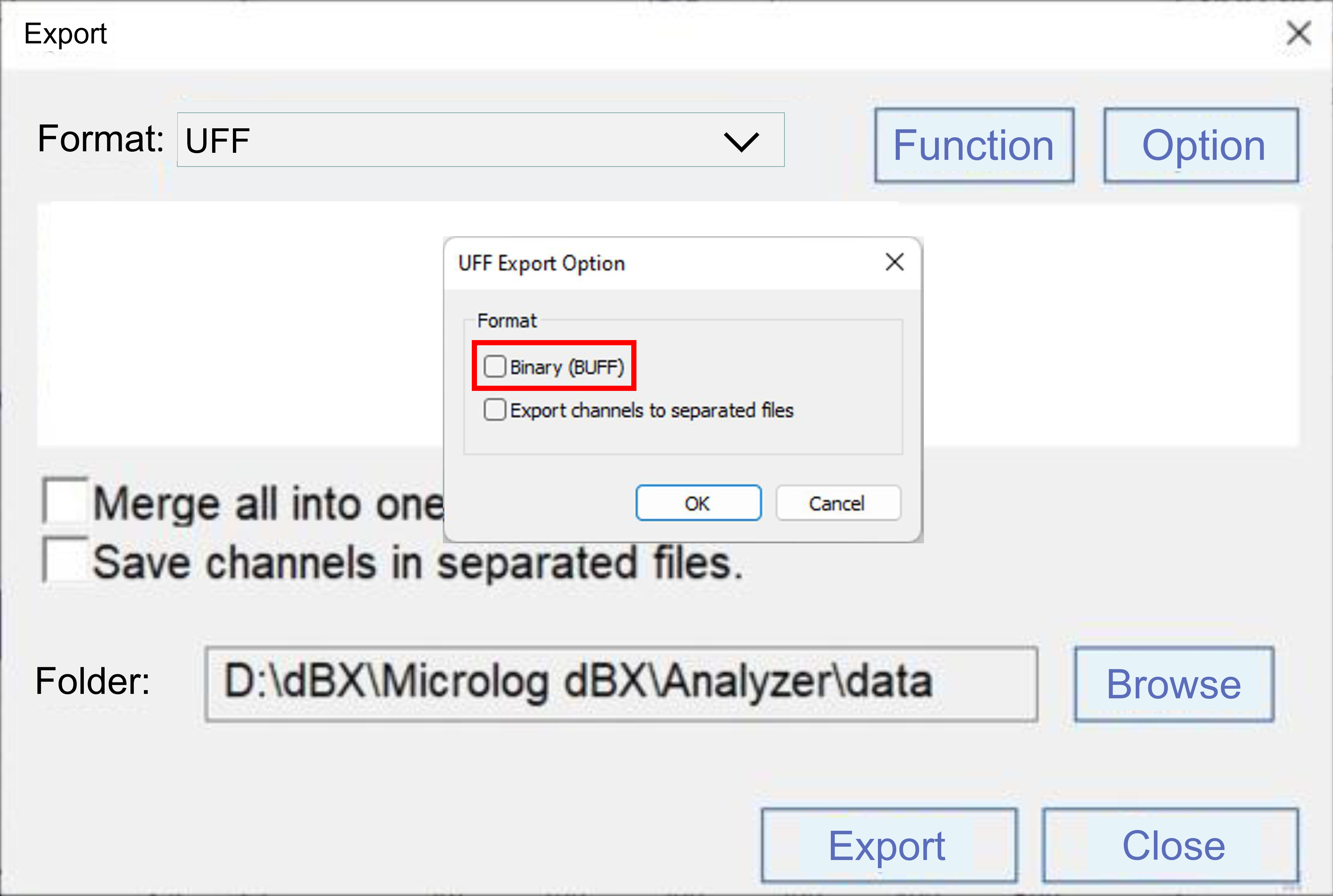

3. Click Option and ensure Binary (BUFF) is not checked.

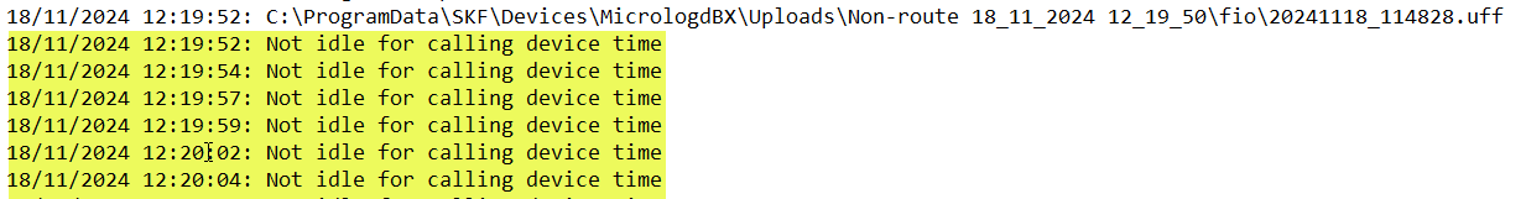

If you check the communication log file after TCTdBX freeze, you will see "Not idle for calling device time" messages appearing every 2-3 seconds. These messages will continue to repeat until the TCTdBX application is ended through the End Task.

Binary UFF data is not supported by either ARM or Analyst / TCTdBX. By deselecting the Binary (UFF) checkbox, the UFF data will be stored as standard ASCII and can be successfully uploaded via TCTdBX.

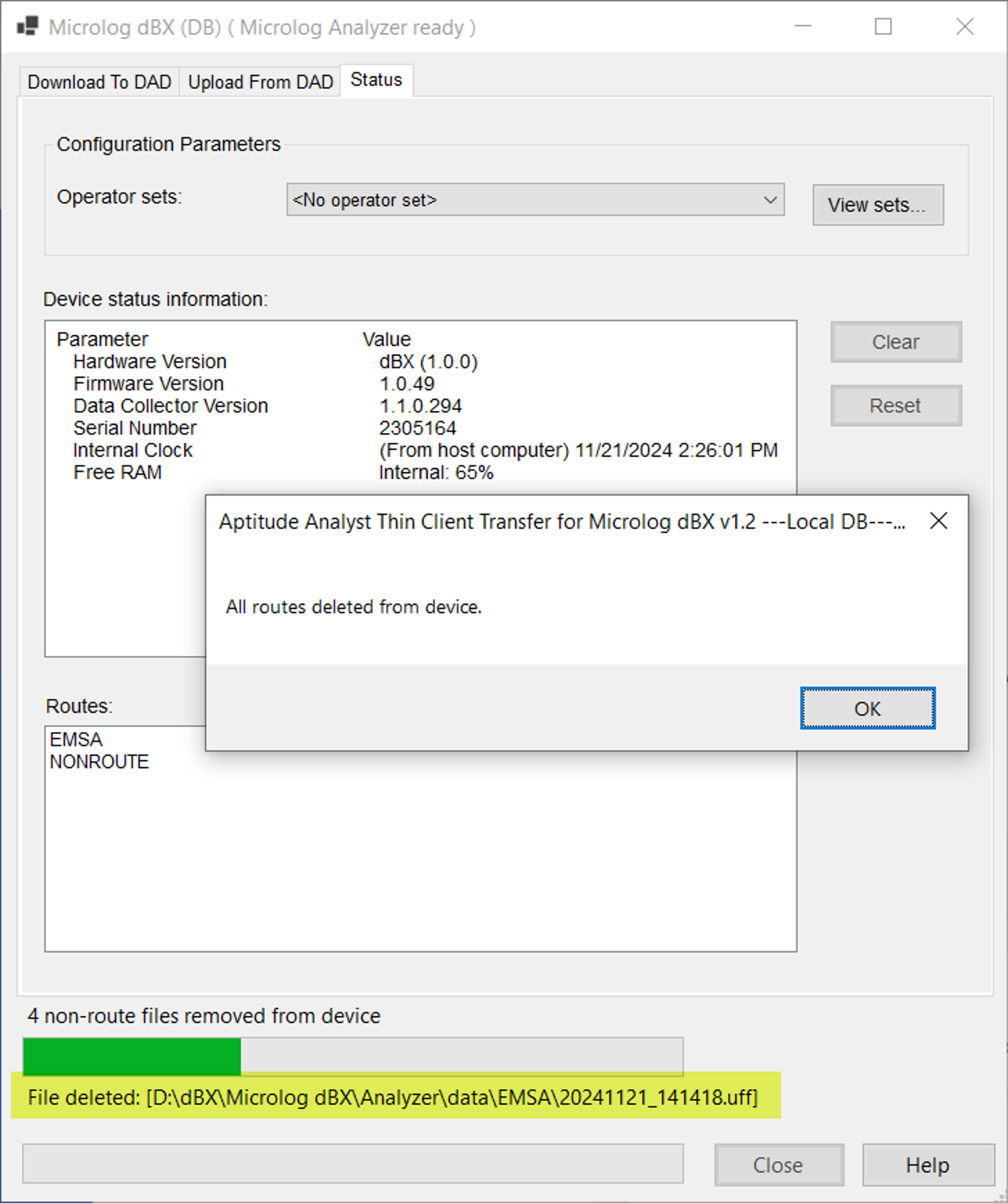

If you stored the Non-Route / Analyzer data as Binary (BUFF), you must remove these UFF files from the Microlog. Clearing the Microlog dBX from TCTdBX will delete all Routes and Non-Route data, including UFF (Binary) files. Once cleared, you can collect new data with Binary (BUFF) unchecked, which can then be successfully uploaded.

Contacting SKF Technical Support Group

For further assistance please open a support case using the Technical Support group's self-help portal at www.skf.com/cm/tsg. Once your support case is submitted, a technician will contact you to begin working on your issue. For urgent issues we are available at these times by phone:

• Monday through Friday, 5:00 a.m. to 4 p.m. Pacific Time -
  Phone: [phone] within the US or [phone] outside the US.
• Monday through Friday, 8:00 a.m. to 4:00 p.m. Central European Time -
  Phone: [phone].
• Monday through Friday, 7:30 a.m. to 4:30 p.m. India Standard Time -
  Phone: [phone].
