Remedy for single value returns in 2-channel Point measurements

Summary

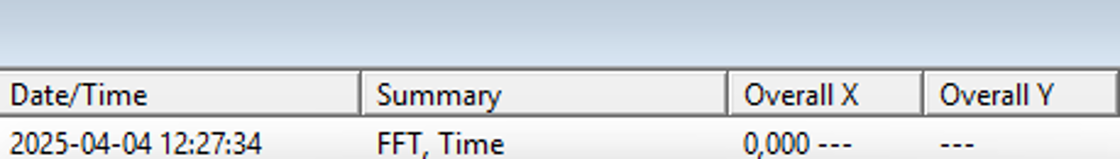

When measuring a 2-channel Point, you might only get a single value recorded by the Microlog dBX.

Solution

Microlog dBX expects each channel to have a unique orientation.

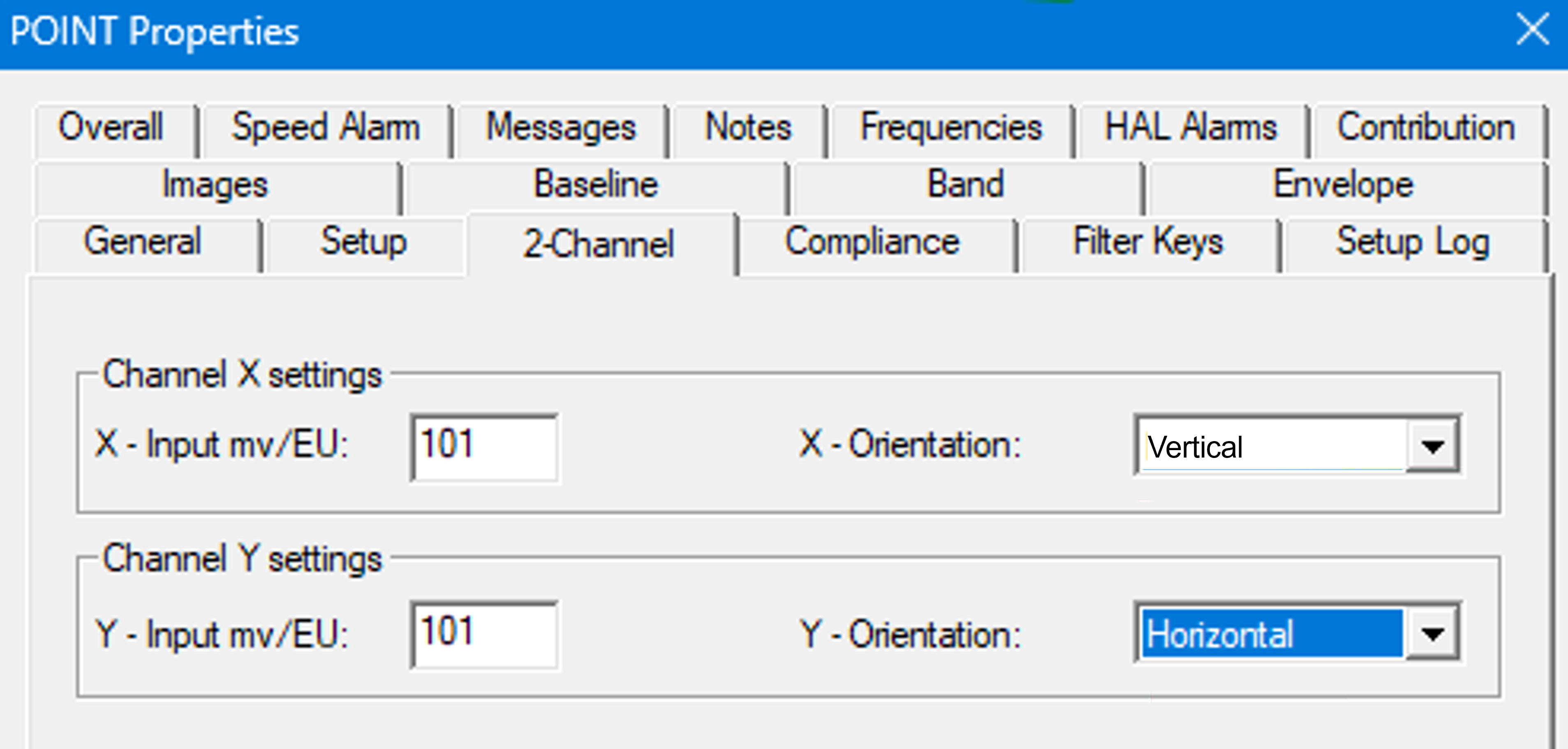

1. In @ptitude Analyst, go to POINT Properties > 2-Channel


2. Set X and Y to a different orientation.
