How to set up a Cross Channel Phase Point in @ptitude Analyst

Procedure

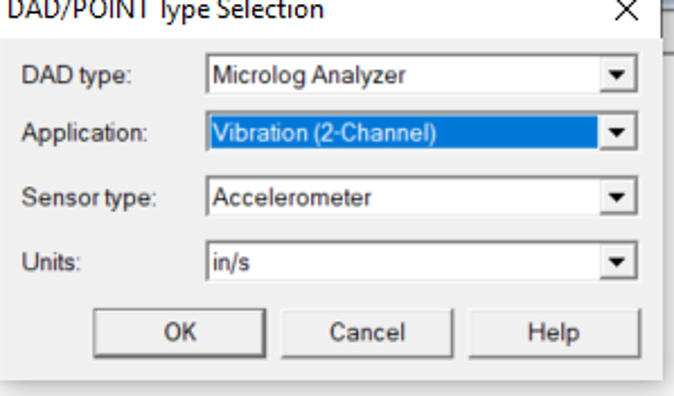

1. Go to Add Point  and select following:


   • • DAD type: Microlog Analyzer
     • Application: Vibration (2-channel)
     • Sensor type: Accelerometer
     • Units

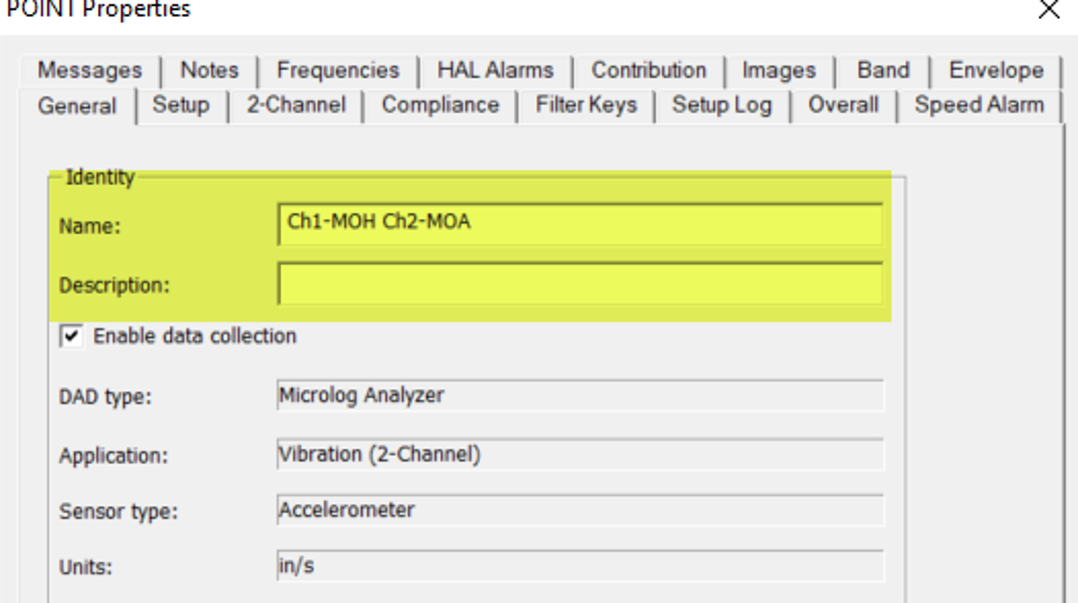

2. Click OK to create the Point and type Name for the created Point.

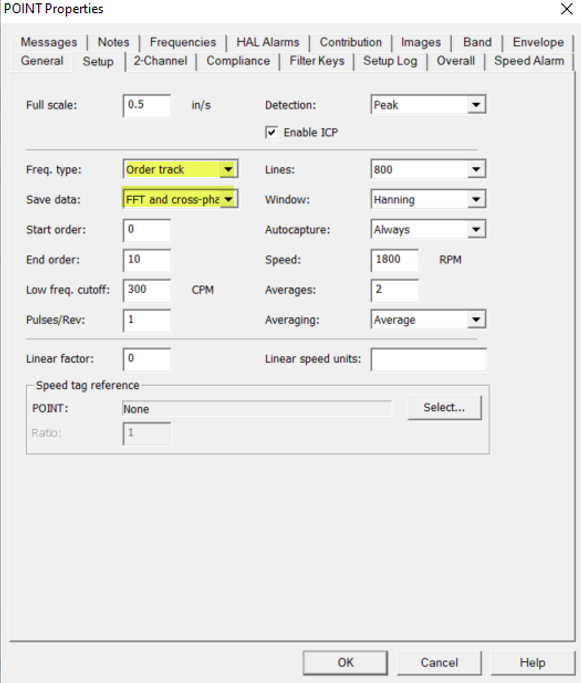

3. Open Setup tab and set:


   • • Freq type: Order track
     • Save data: FFT and cross-phase

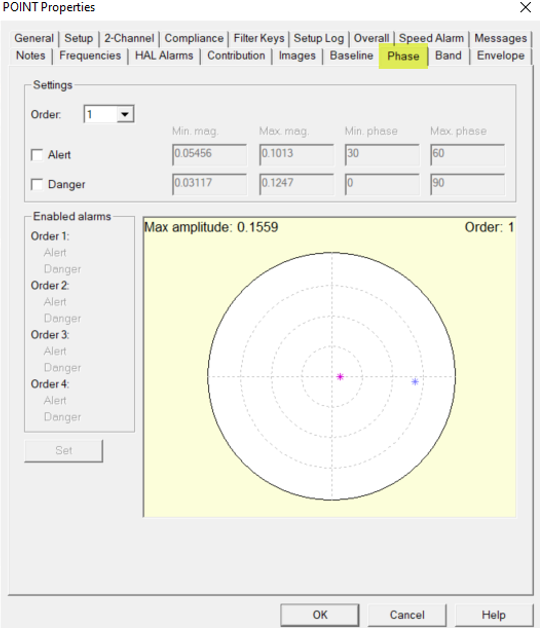

When the Point is created, a Phase Alarm can only be set after the first measurement is taken.  After reading the measurement, a Phase tab will appear.
